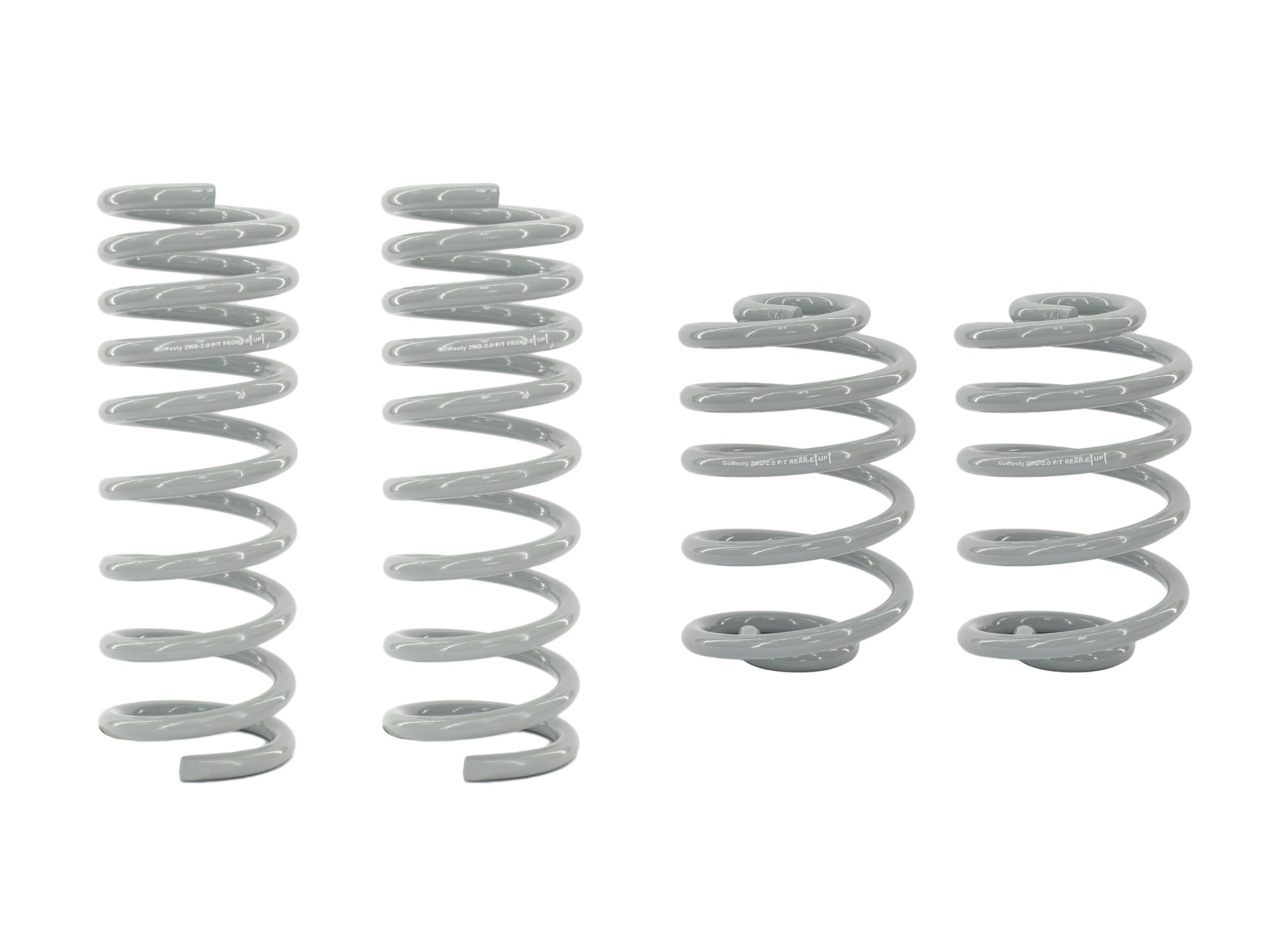

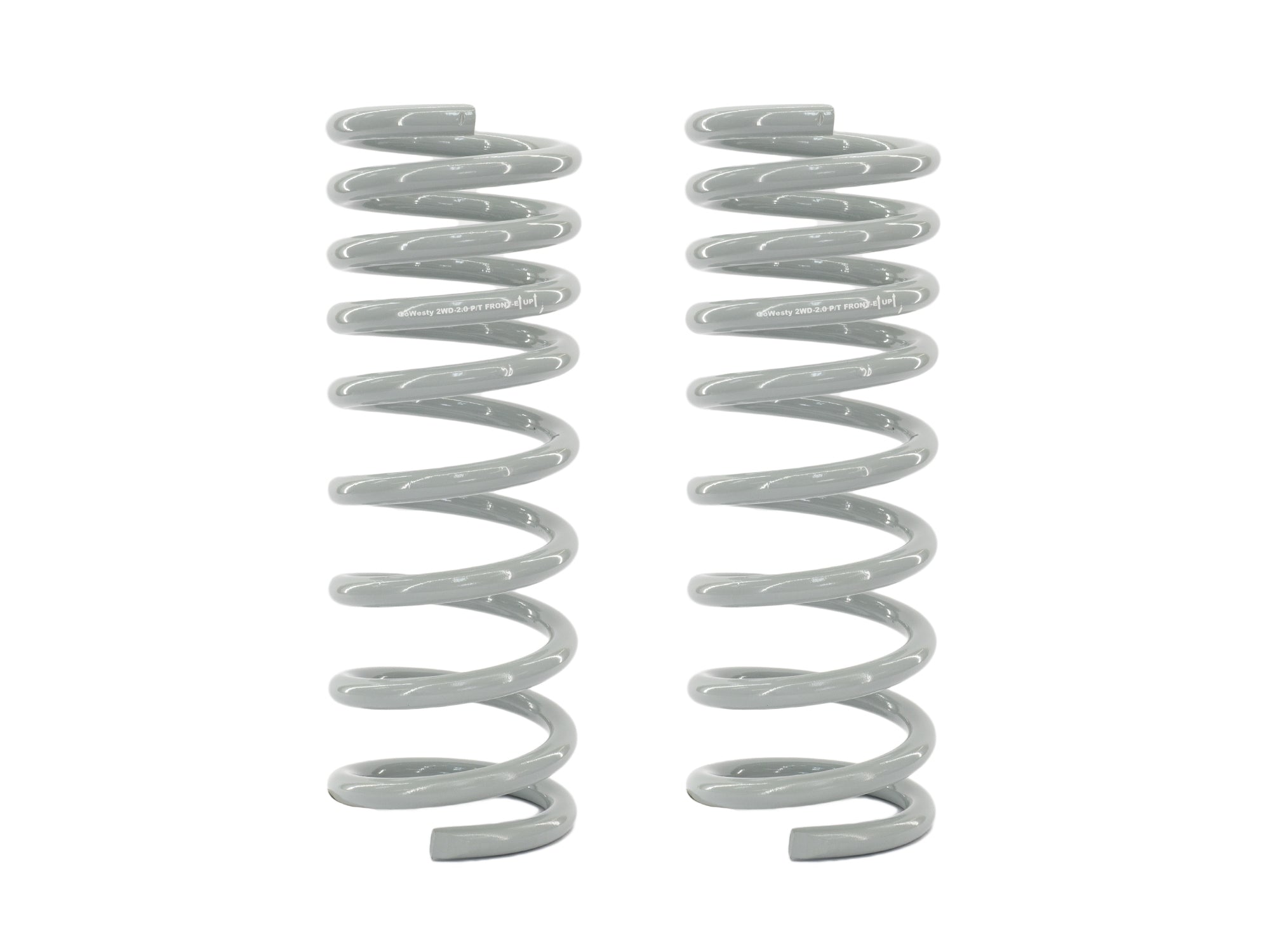

This is a complete set of four GoWesty-designed dual-rate coil springs for your 2WD Vanagon.

These springs are an exclusive GoWesty design. They are made right here in America by a leading automotive spring manufacturer that supplies many aftermarket companies. They feature an ultra-modern, hot wound (just like the OEM springs), dual-rate design based on the manufacturer's knowledge and our personal R&D over the past decade. They may look unusual, but they work. For the complete story on these springs, and a thorough explanation as to why they are the way to go, For an informative response to the oft-asked question, "If I add lifting springs, do I have to install a longer shock?" Options—Now you have a decision to make: Do you choose the 2" lowering, ZERO lift springs, or the 1.5" lift springs?

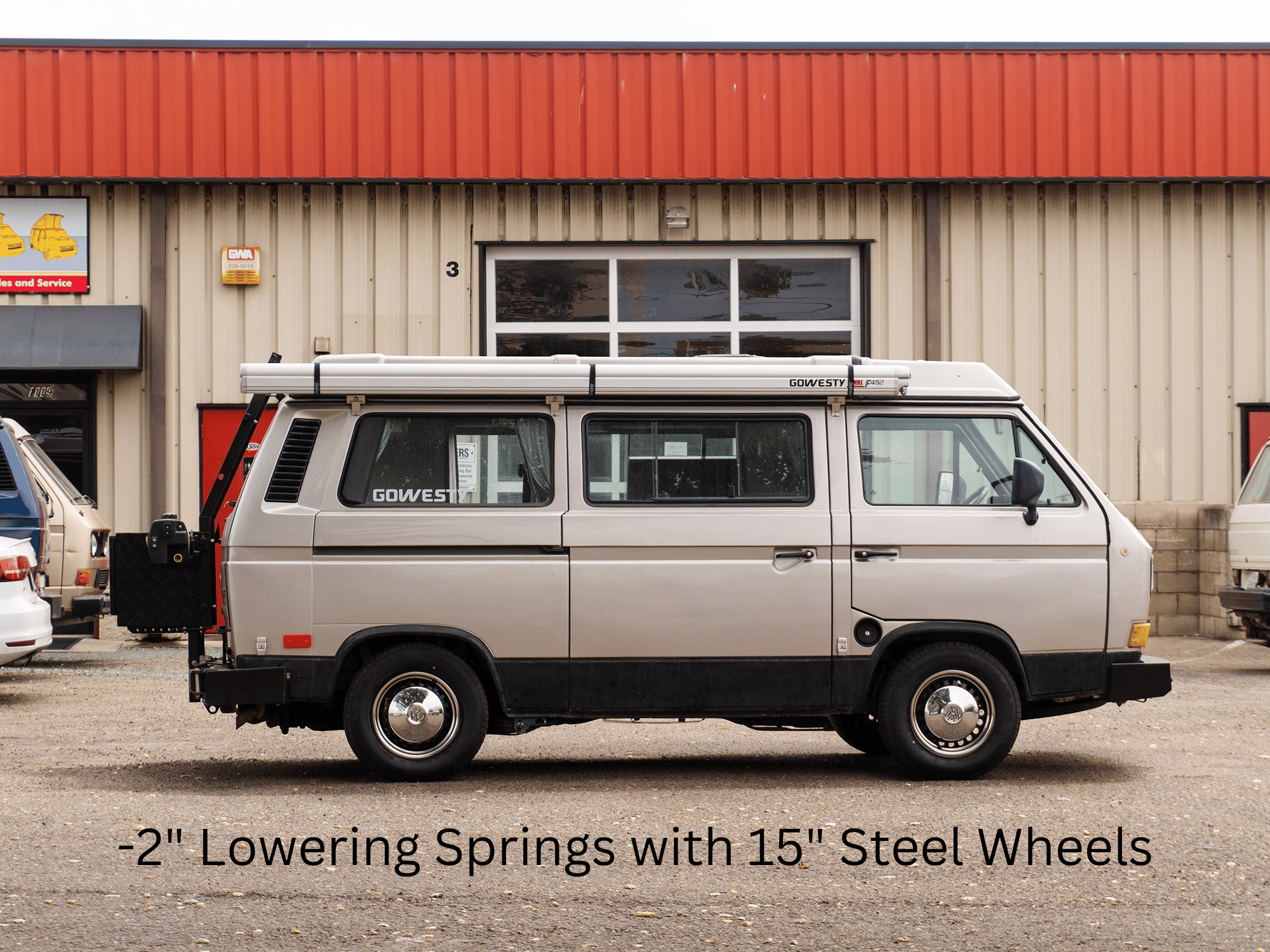

2" LOWERING: These springs will lower a 1980-91 Vanagon 2WD Westfalia camper about 2", bringing it down to roughly the factory height of a Multi-Van weekender model that came with factory lowering springs. On a lighter hard-top Vanagon (or single/double cab truck), expect a drop of 1” at most, and quite possibly zero depending on the year and model. These springs ride a bit firmer than our +0" and +1.5" springs, but they still offer a comfortable ride - especially with our new .

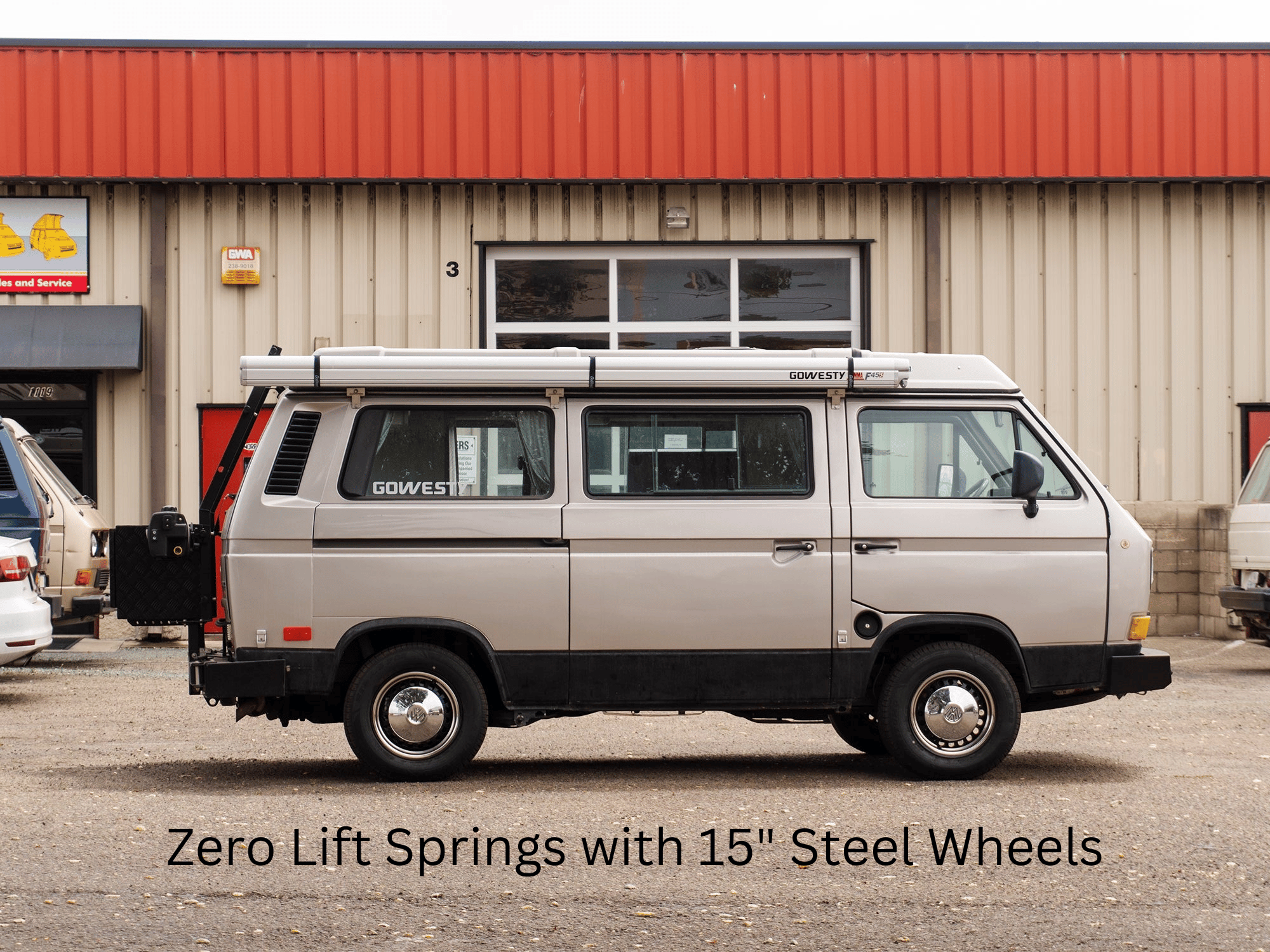

ZERO LIFT: These are designed as a direct replacement for all 1980-91 Vanagon 2WD Westfalia campers and will maintain your factory ride height. If you have the much lighter hard-top Vanagon (or single/double cab truck), you will see a slight suspension lift of up to 1.5". If you have an engine conversion that has a different weight or weight distribution—something other than the Vanagon water-boxer engine—your Vanagon may not sit level. These springs are NOT designed to compensate for Vanagons with engine conversions. If you need additional leveling, we offer spring pads. Keep in mind that certain models of Vanagon (like the Carat) have factory lowering springs, and they sit 1.5" to 2" lower than standard camper models; thus, these zero lift springs will actually lift your vehicle about 1.5" to 2" overall!

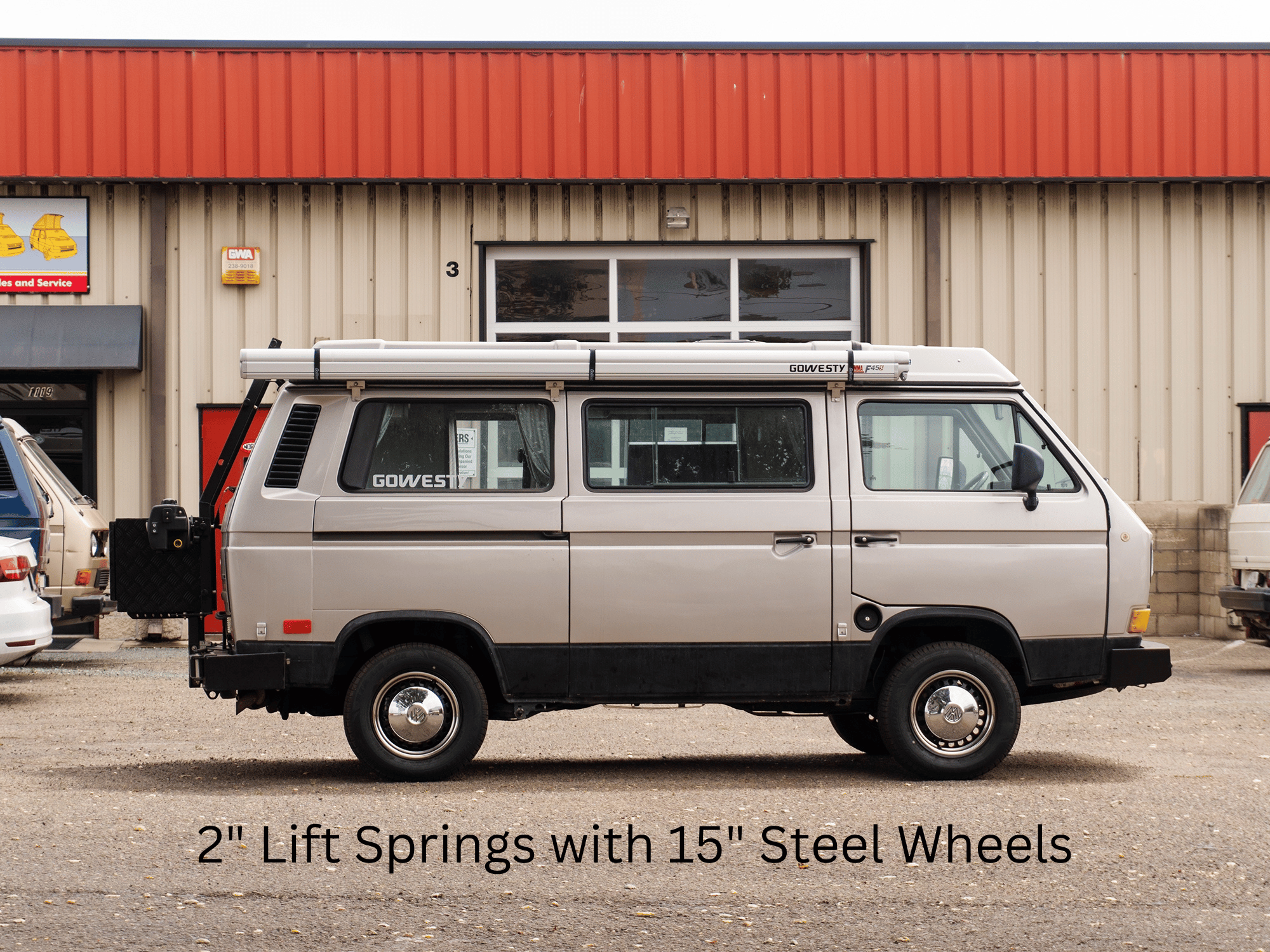

1.5" LIFT: These springs will provide roughly a 1.5" suspension lift for all 1980-91 Vanagon 2WD Westfalia campers. If you have the much lighter hard-top Vanagon (or single/double cab truck), these springs will provide too much lift for your suspension geometry. Don't say we didn't warn you! If you have an engine conversion that has a different weight or weight distribution—something other than the Vanagon water-boxer engine—your Vanagon may not sit level. These springs are NOT designed to compensate for Vanagons with engine conversions. If you need additional leveling, we offer spring pads. This lifting spring set requires either our our billet aluminum  or our for correct suspension geometry.

ADDITIONAL NOTES FOR 0" LIFT AND LOWERING SPRINGS: The difference in lengths between the spring being removed and the new GoWesty spring being installed IS NOT NECESSARILY the before/after resulting change in ride height once installed.

ADDITIONAL NOTE ON CV JOINTS: As the CV joints wear out, a wear pattern is created between the CV balls, inner, and outer races. Lifting your vehicle means the drive axles will now be riding at a different angle. Depending on how worn-out your axles are, this may cause a new vibration under load. The two remedies are to either replace the axles with a fresh set or rotate the CV joints so they are loaded in the opposite direction where there is little to no wear pattern to cause vibration. If your vehicle has identical axle lengths on left and right sides (not all models do), you can simply swap the axles left to right and the CVs will be loaded in the opposite direction. If the axles are not the same, the CV joints will have to be removed from the axles and moved to the opposite axle to achieve the same result. This is a good practice regardless of lifting as it will extend the life of your CV joints.
