For many years now, the "Achilles' heel" of the 1983-91 Vanagon has been the antiquated and usually-problematic Bosch engine management system. Even when it was brand new, it was far from perfect. Fast forward over thirty years, and one finds as that every wire, connection, and component has the potential to bring your perfectly planned road trip to a screeching halt. Volkswagen themselves knew the system had genuine flaws, as did every Vanagon owner, repair shop, and parts retailer.

For over a decade, we explored fixes, patches, upgrades, and improvements. We were convinced we could get it to work reliably, but we were wrong. Short of Volkswagen releasing brand-new parts to completely replace the entire system, the original Bosch management system was going the way of the Dodo.

The writing was on the wall: The system had to be replaced with something smarter and more reliable.

But what would this be, and who would invent such a thing? Who else? GoWesty! We rolled up our sleeves back around 2012 and got to work! After thousands of test hours, tens of thousands of test miles, and an unbelievable amount of effort, we were finally able to release this system in January 2018!

This product does the following:

• Replaces no-longer-available-new (NLA) Bosch components
• Improves reliability
• Improves fuel efficiency

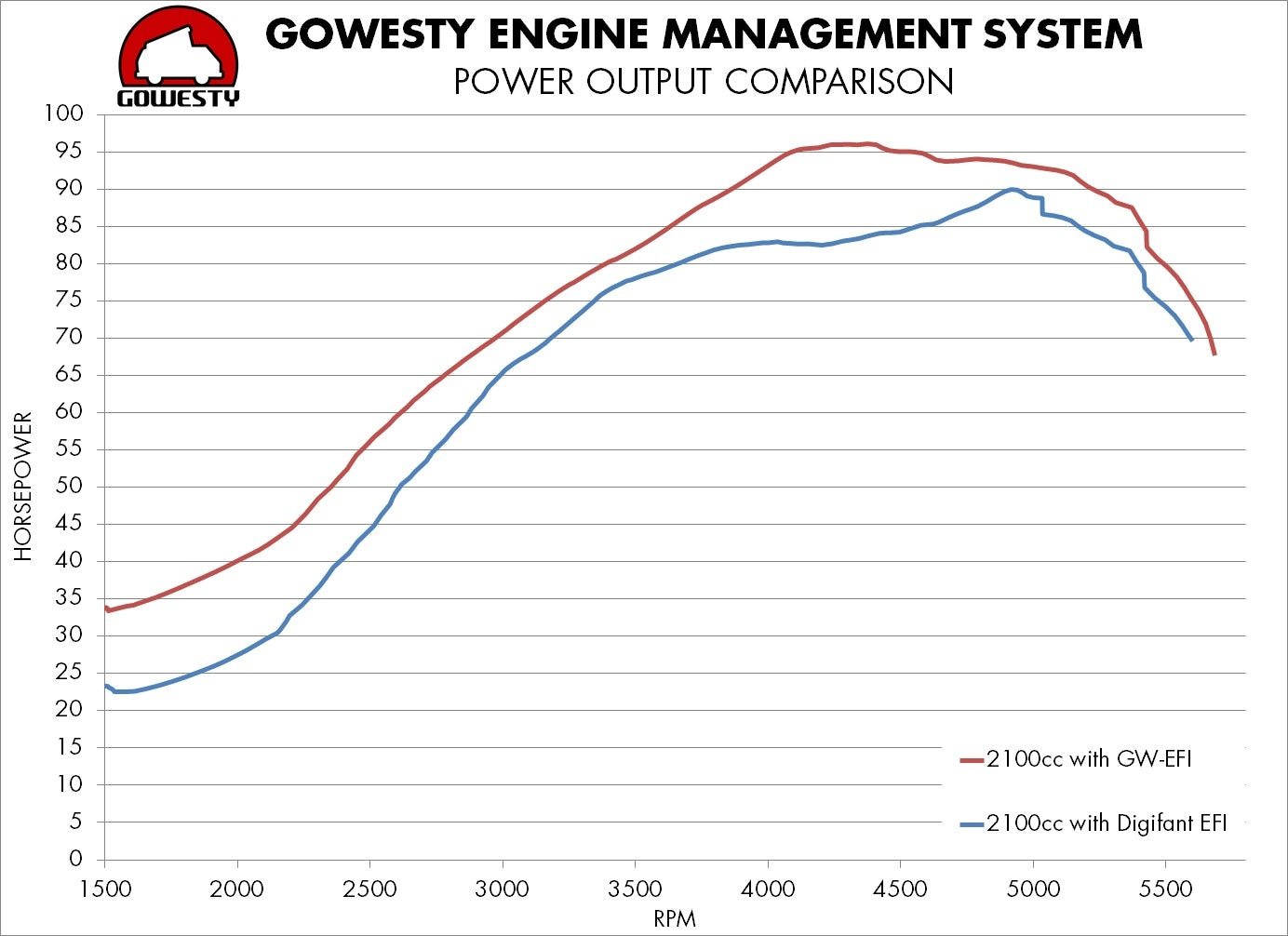

• Improves performance
• Adds self-diagnostic capability (OBD-II) via ScanGauge 2 or 3* - See "Display" tab
• Compatible with any 1986-91 waterboxer currently running Digifant fuel injection!

• Smog-legal in all 50 states! Executive Order


Do you have a 1983-85 Vanagon with Digijet Injection?

Components

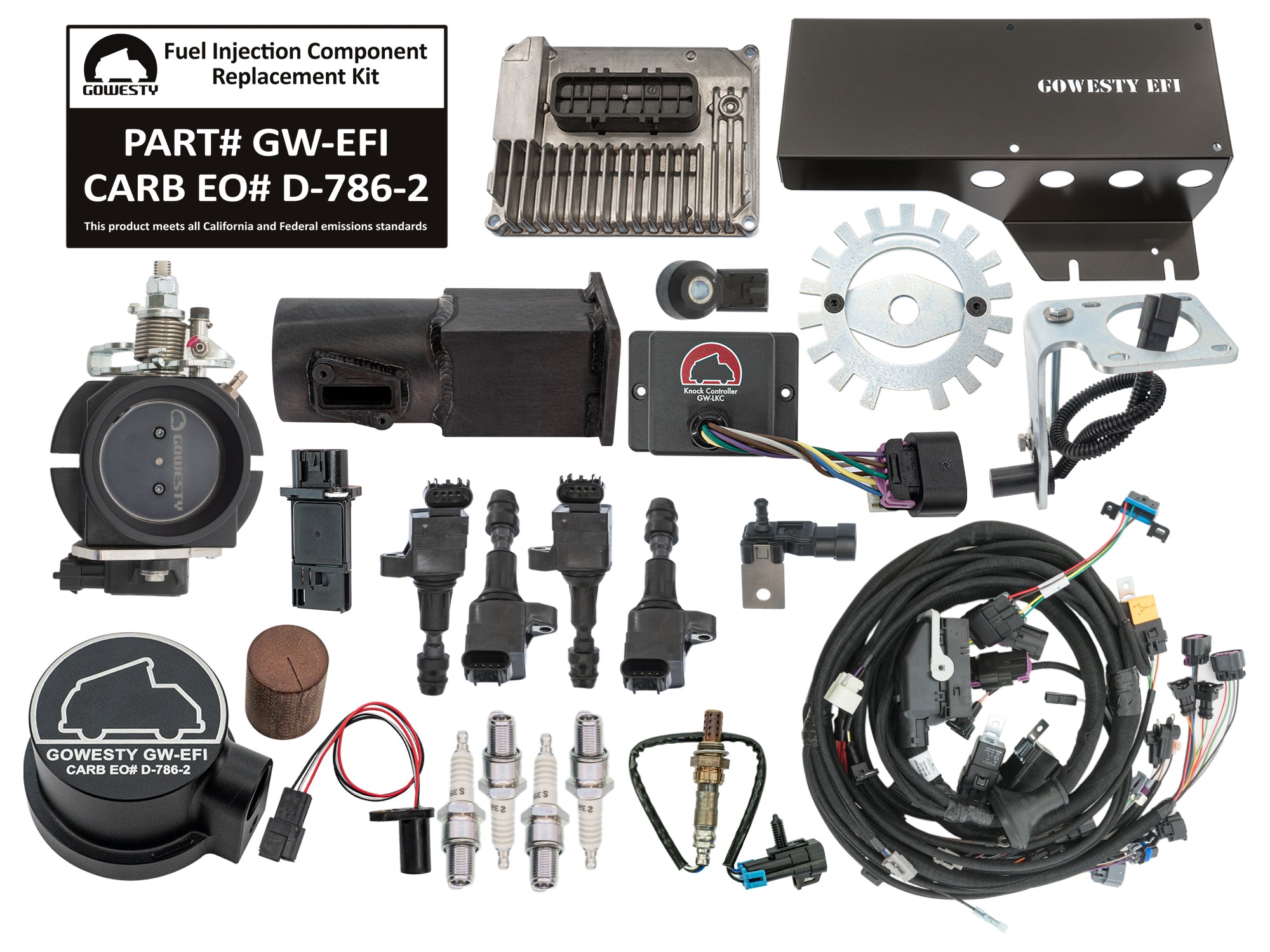

The GoWesty Engine Management System is comprised of:

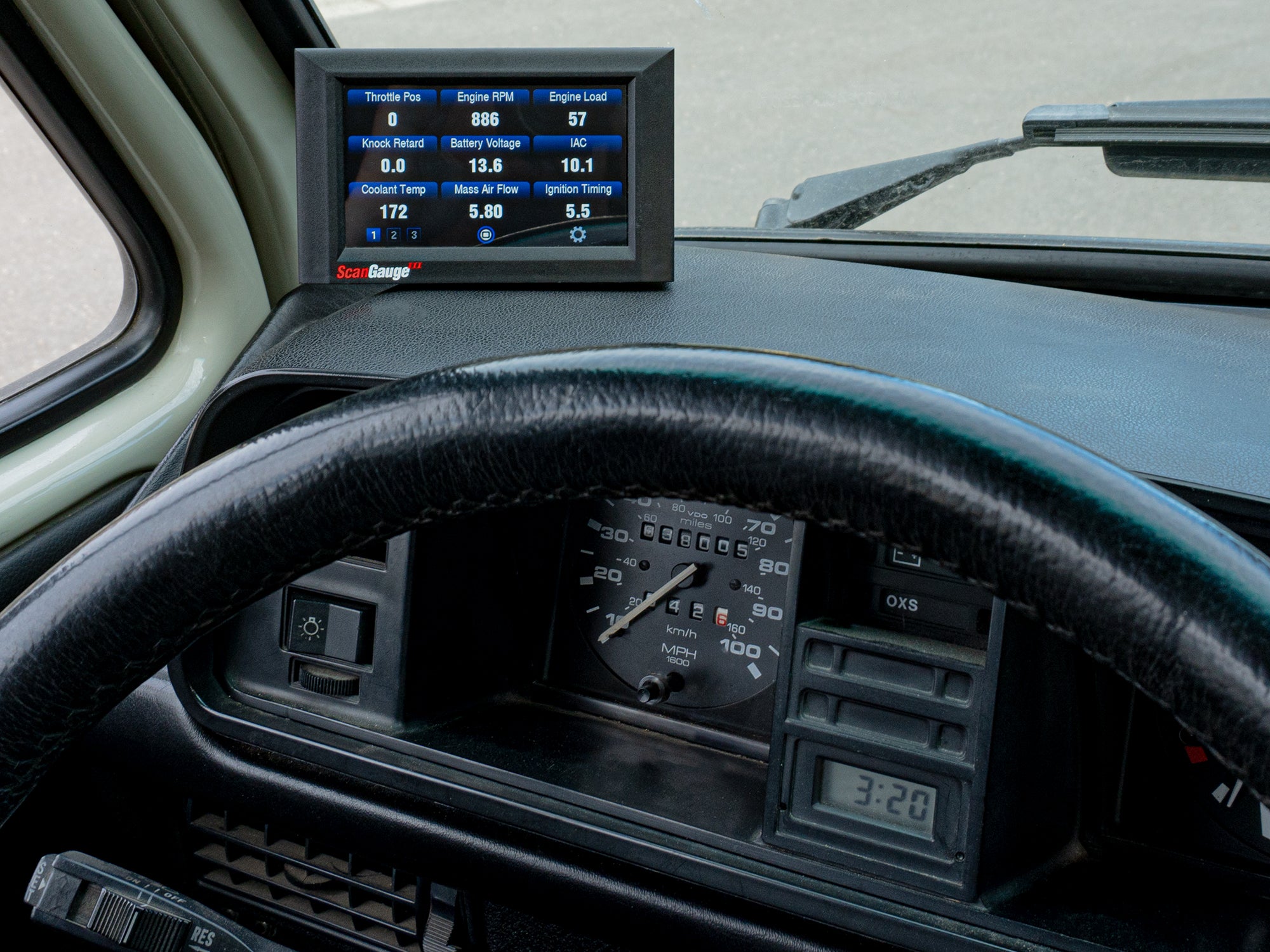

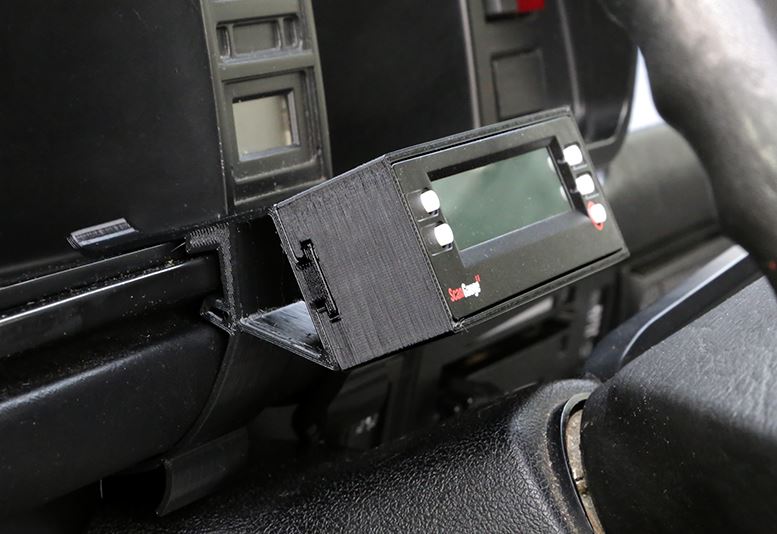

ScanGauge OBD-II Kit & Dash Mount

• The ScanGauge adds an OBD-II dash display to your GoWesty EFI System. This is a must-have tool for monitoring the health of your engine in real time, and is indispensable when it comes to diagnosing issues.
• Your choice of ScanGauge2 (smaller black and white display) or Scangauge3 (larger color display with touch screen).

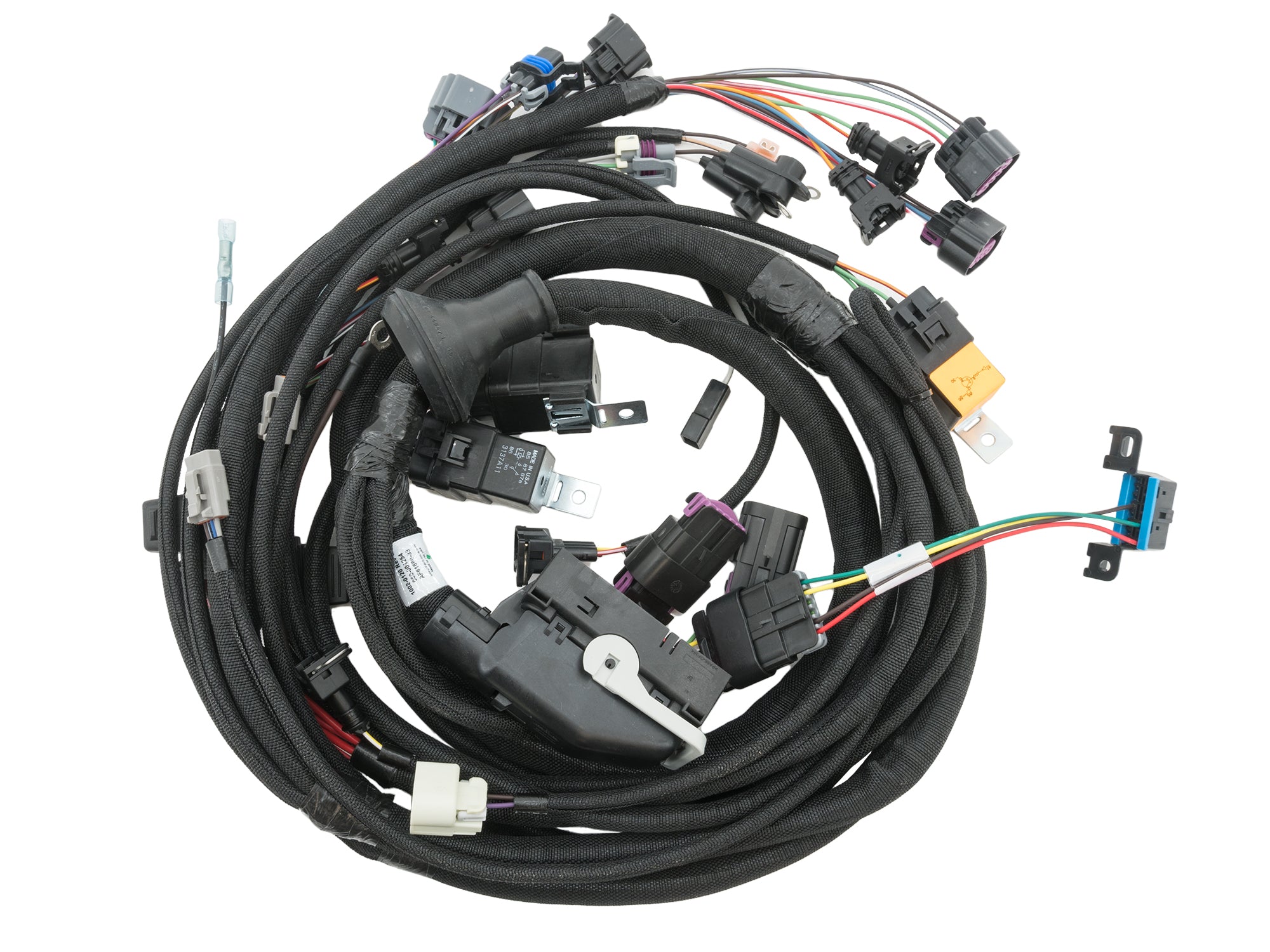

GoWesty-designed all-new engine management wiring harness

• Replaces prone-to-moisture intrusion, antiquated, corroded, and NLA factory harness
• All modern, completely sealed connectors for years of trouble-free service in all conditions

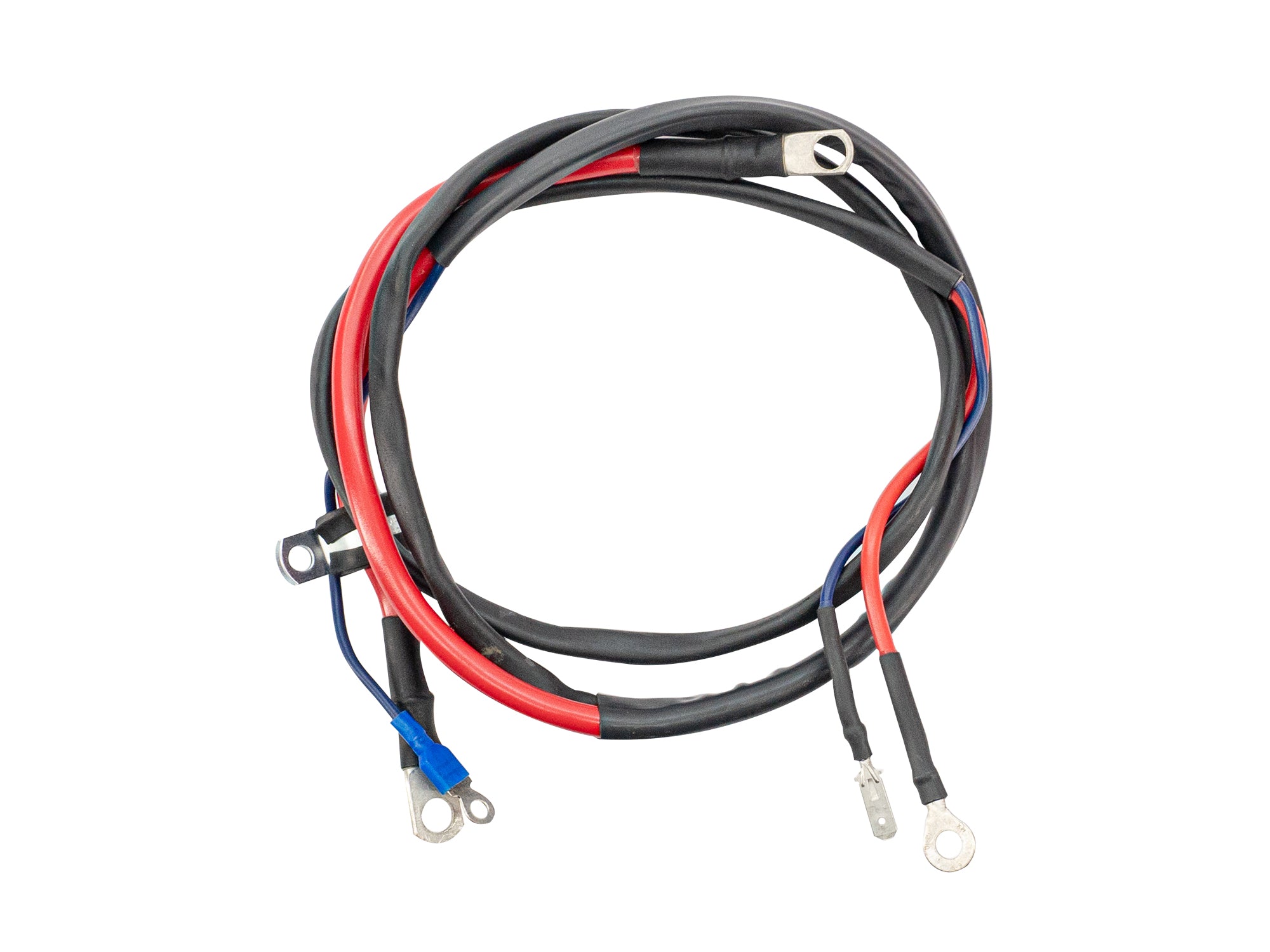

• Also included with every kit is a GoWesty  to ensure a reliable power supply to the system!

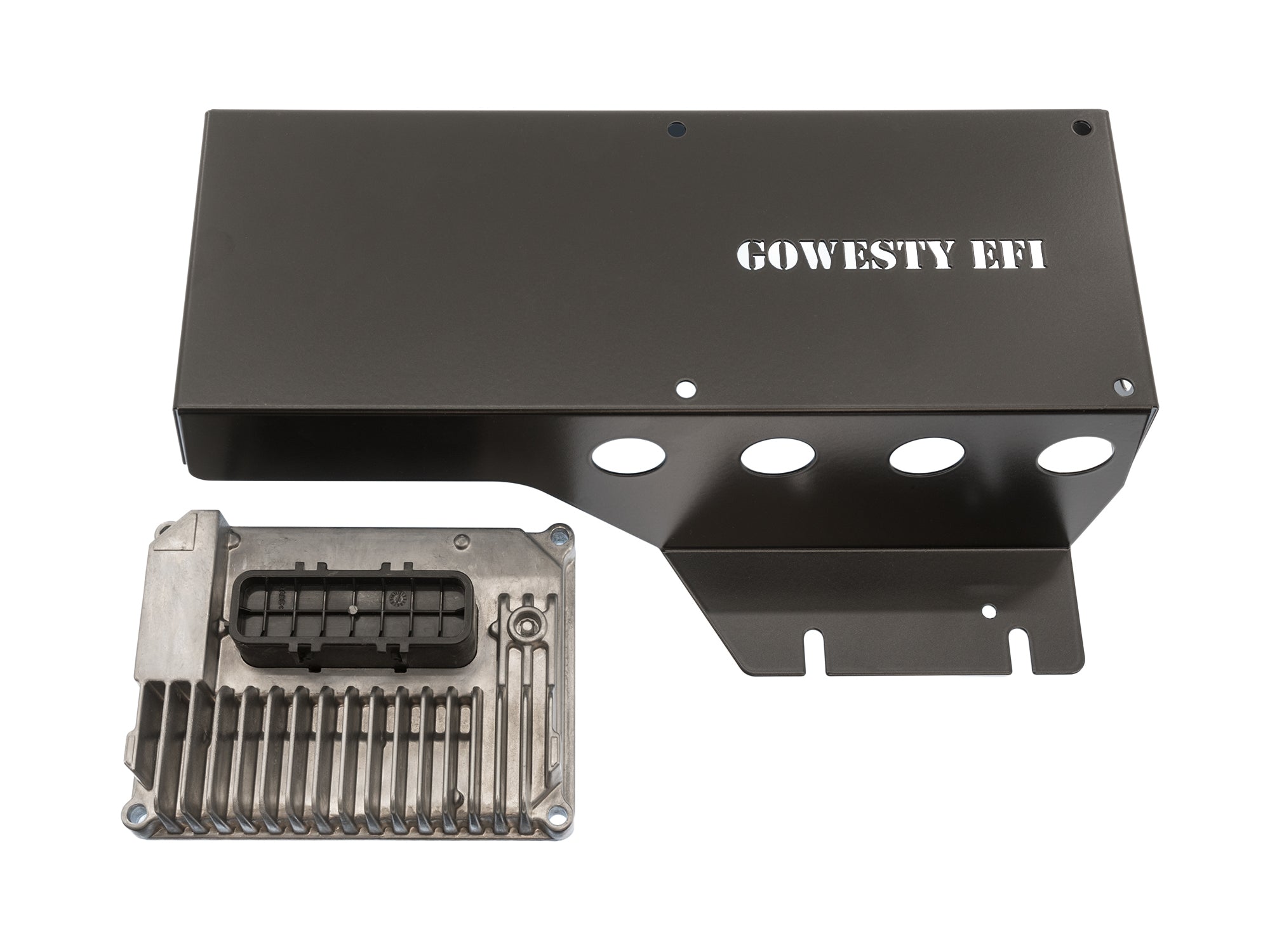

New Electronic Control Unit (ECU)

• Replaces no-longer-available (NLA) Bosch ECU and Idle Control Unit (ICU)
• Has standard OBD diagnostics via OBD-II - Added feature
• Compatible with standard real-time parameter displays, including ScanGauge - Added feature
• Capable of future software updates if/as needed - Added feature
• Sequential-fire injection instead of batch-fire injection

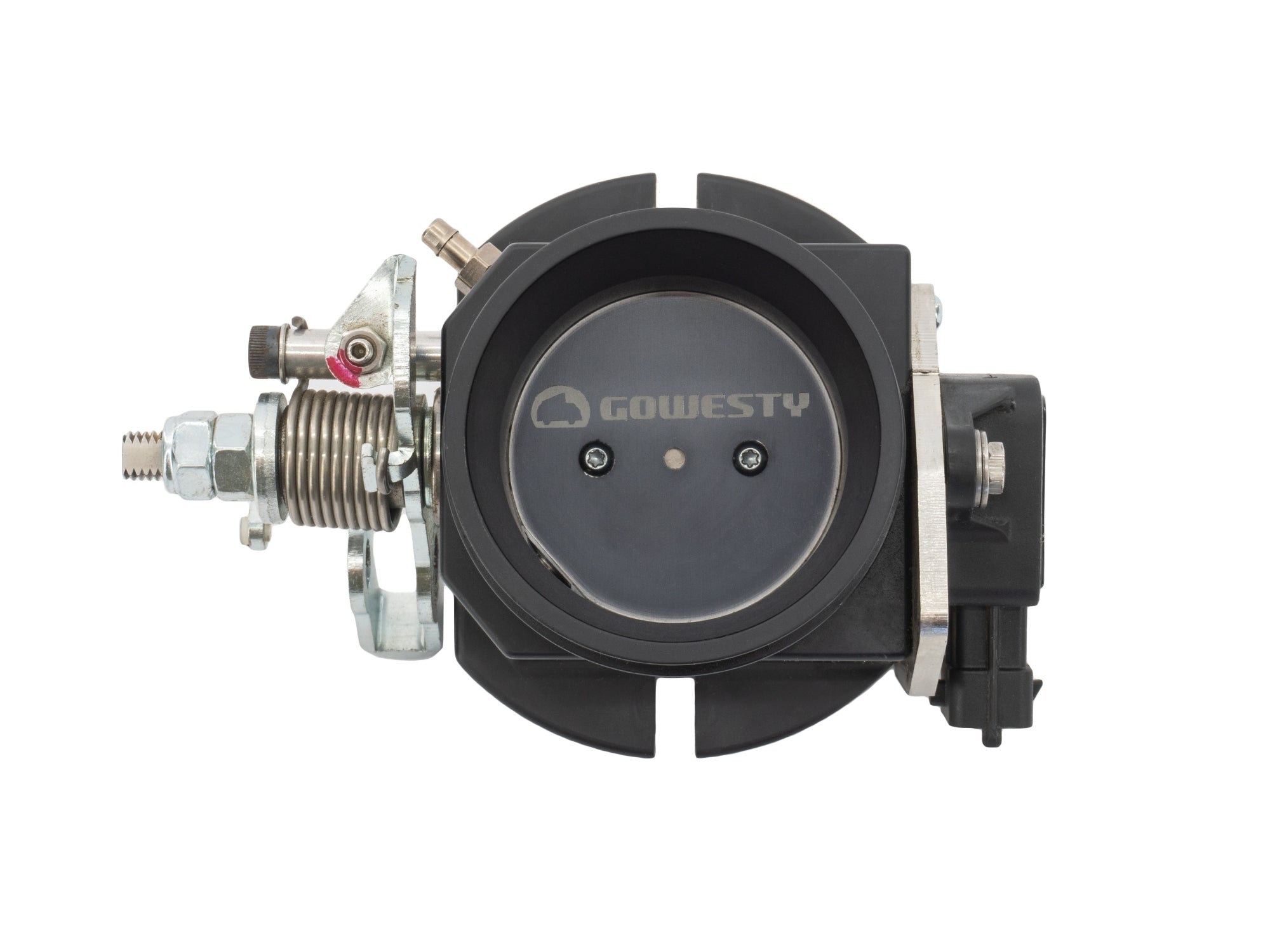

All-new Billet Aluminum Throttle Body with modern TPS

• Replaces worn-out original throttle body with a new redesigned unit
• Modern, sealed TPS replaces antiquated and NLA factory throttle position switch
• Obtains accurate throttle position throughout the throttle range

Modern manifold absolute pressure (MAP) sensor

• Added sensor for better fuel management control
• Used to obtain engine load and barometric pressure reading
• Provides data for automatic altitude compensation—added feature

New oxygen sensor

• Replaces antiquated factory oxygen sensor
• Modern 4-wire design with sealed electrical plug—added feature
• Used to adjust fuel trims

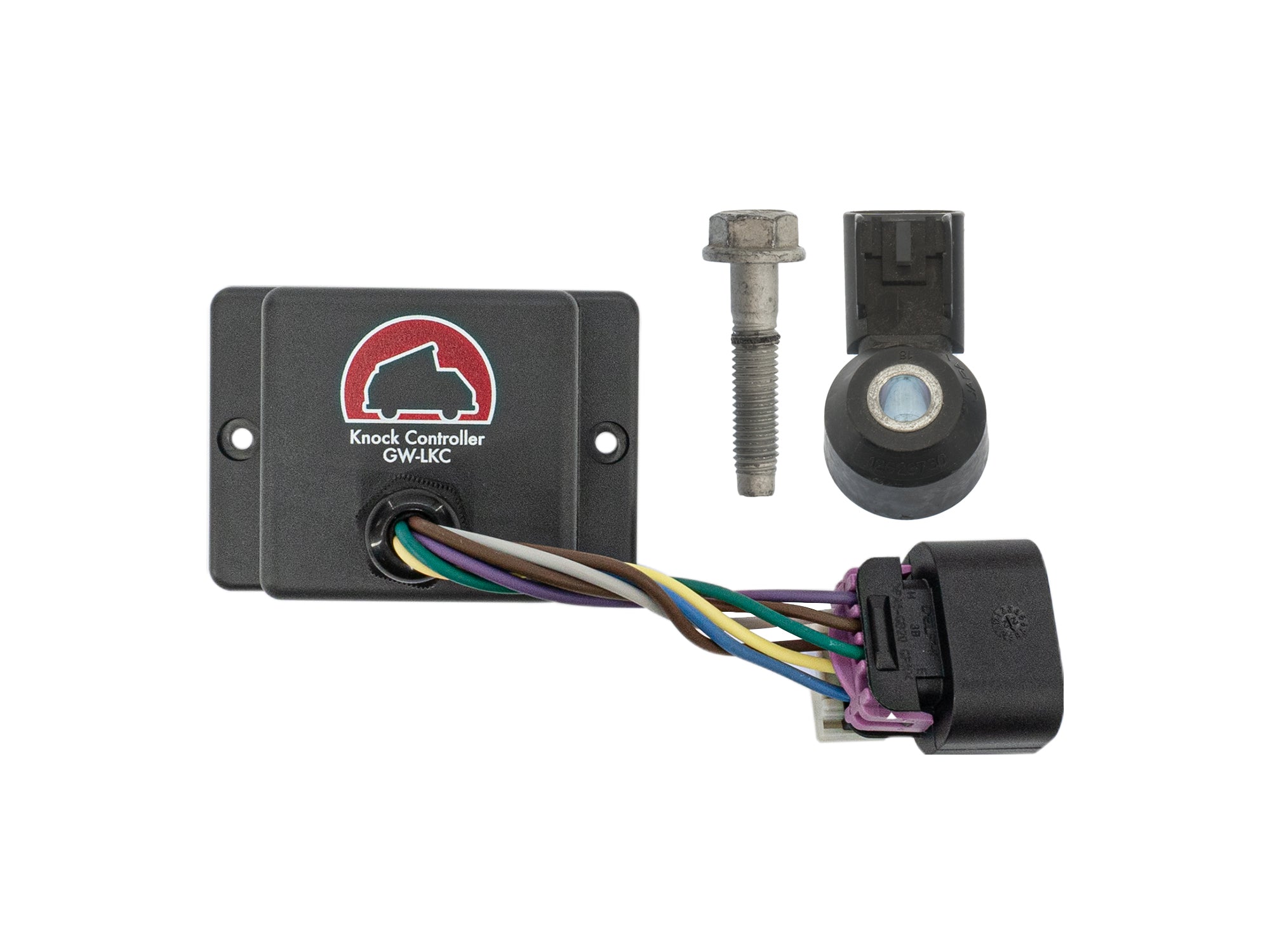

New knock sensor and controller

• Added sensor to protect engine against detonation/pre-ignition
• Used to detect detonation/pre-ignition (called knock) and retard timing to mitigate detonation/ pre-ignition

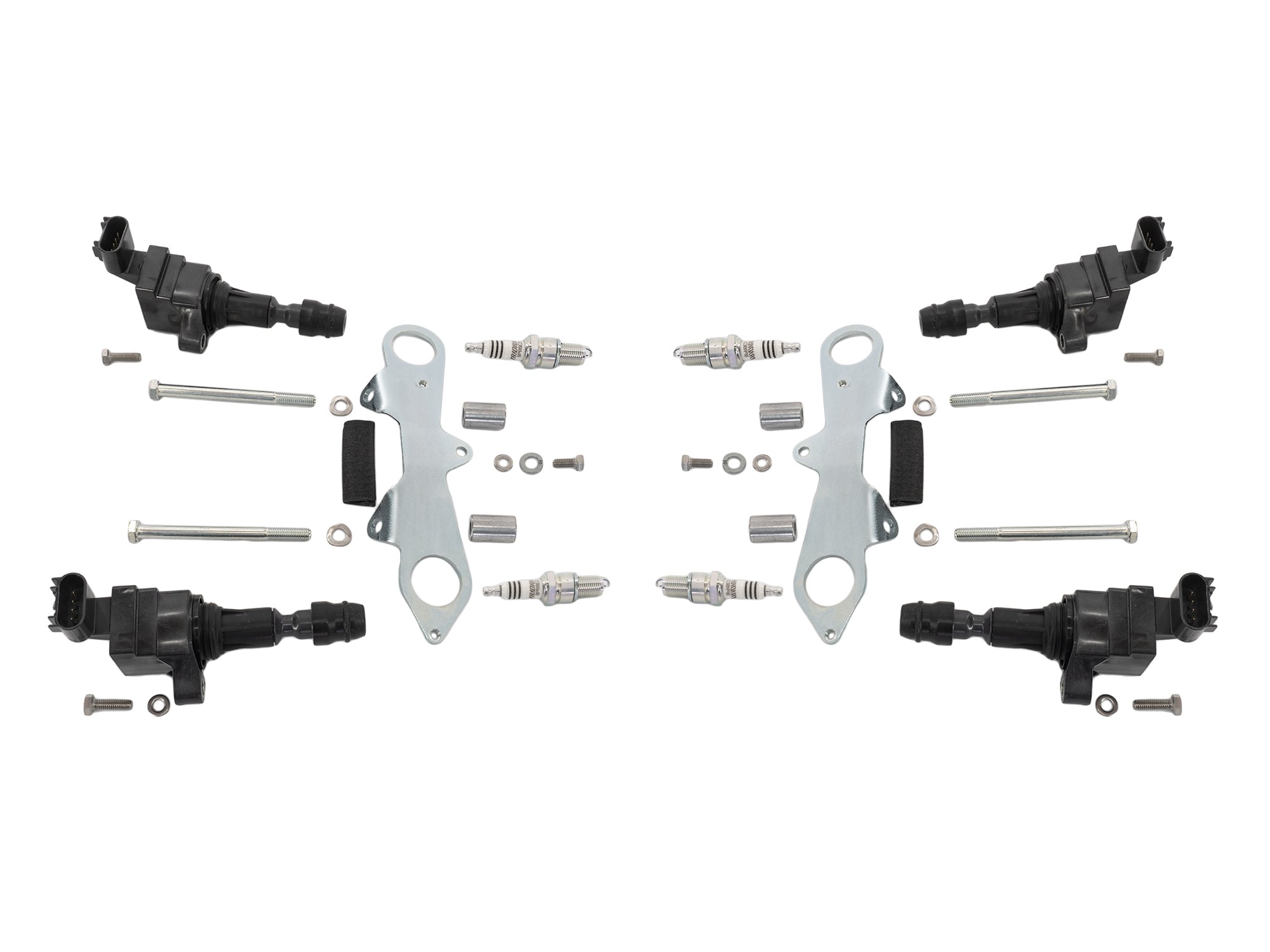

Modern distributor-less ignition system

• New electronic coil-on-plug ignition coils replaces antiquated factory single coil
• No more high-voltage ignition wires - a common source of spark that causes engine compartment fires - new feature

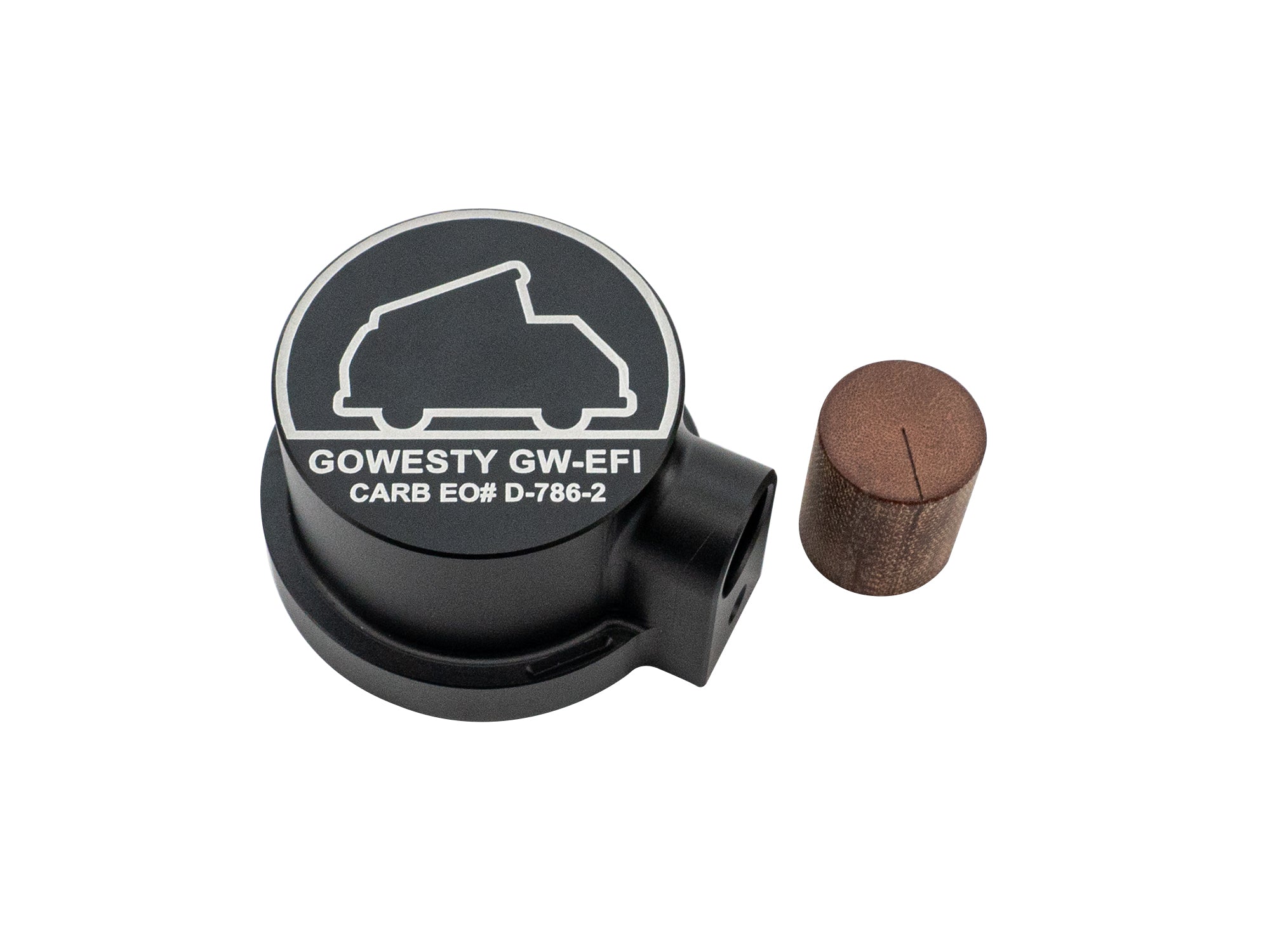

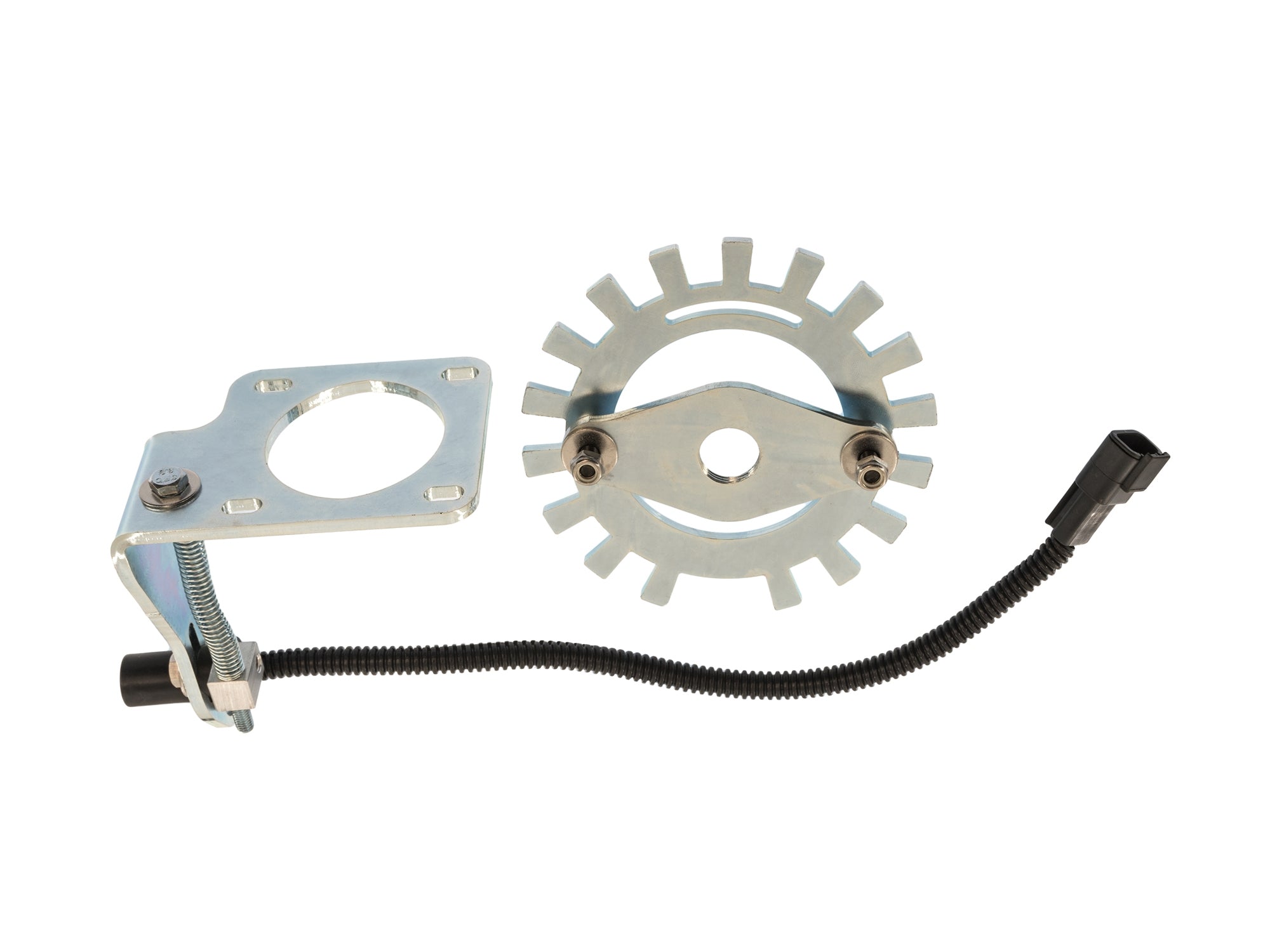

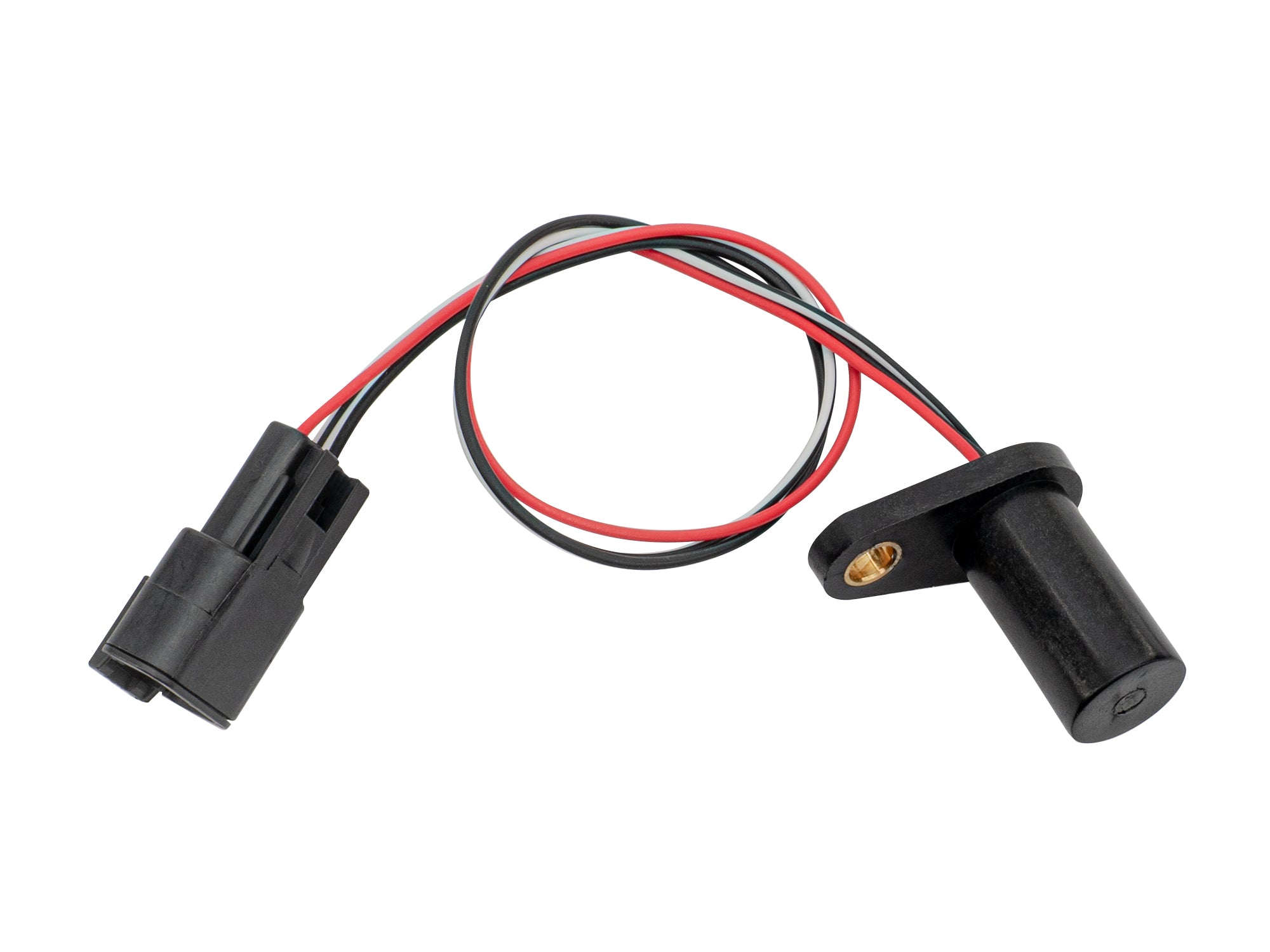

• GoWesty-designed cam position unit and crank position wheel replaces antiquated distributor, cap, rotor, wires
• Used to accurately determine crankshaft and camshaft position

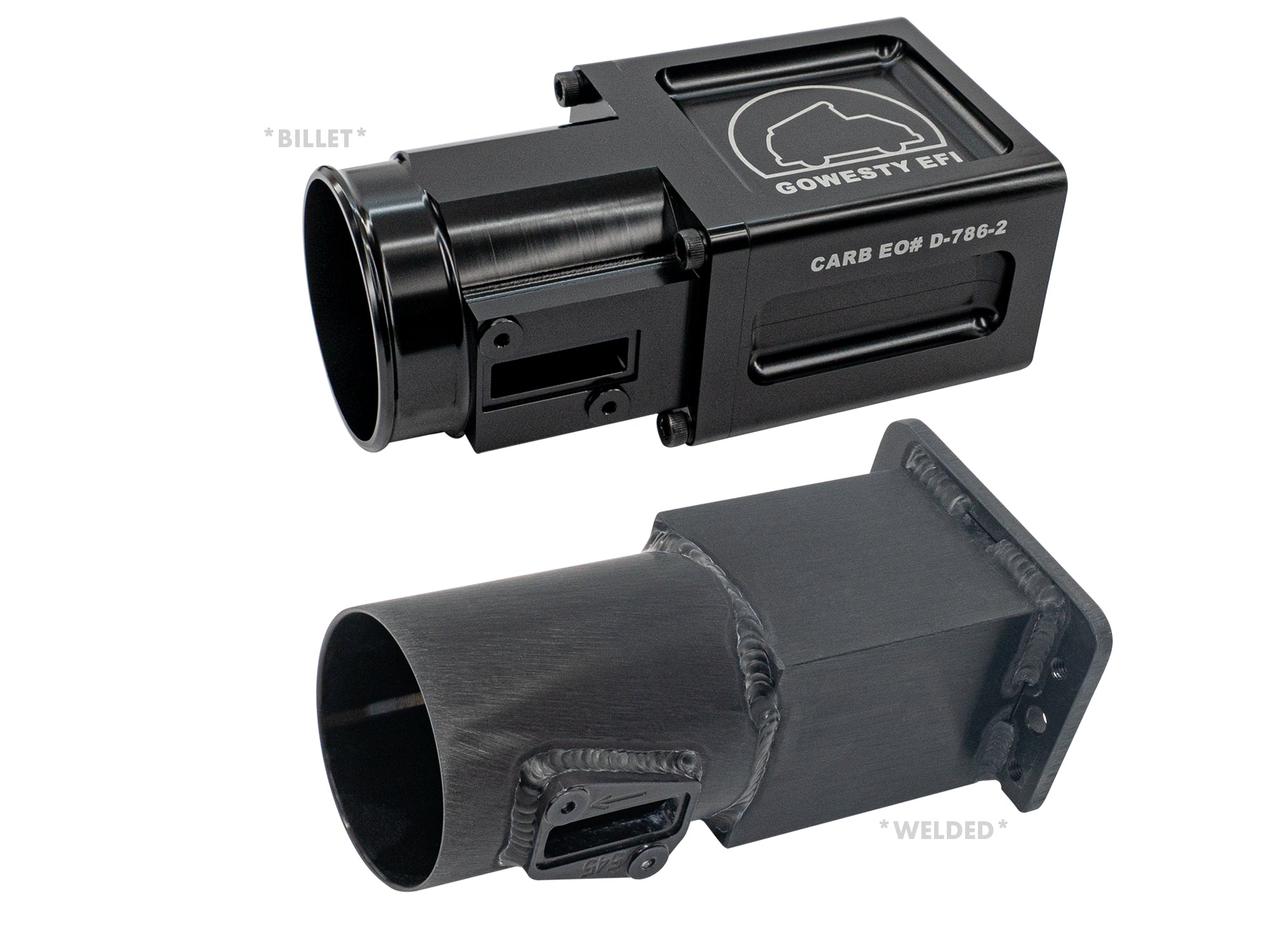

Modern Mass Air Flow (MAF) sensor in GoWesty-designed MAF housing

• Replaces antiquated and NLA factory "trap door" air flow meter
• Measures mass of incoming air in order used to calculate required amount of fuel injection
• Your choice of basic welded housing or deluxe CNC billet housing

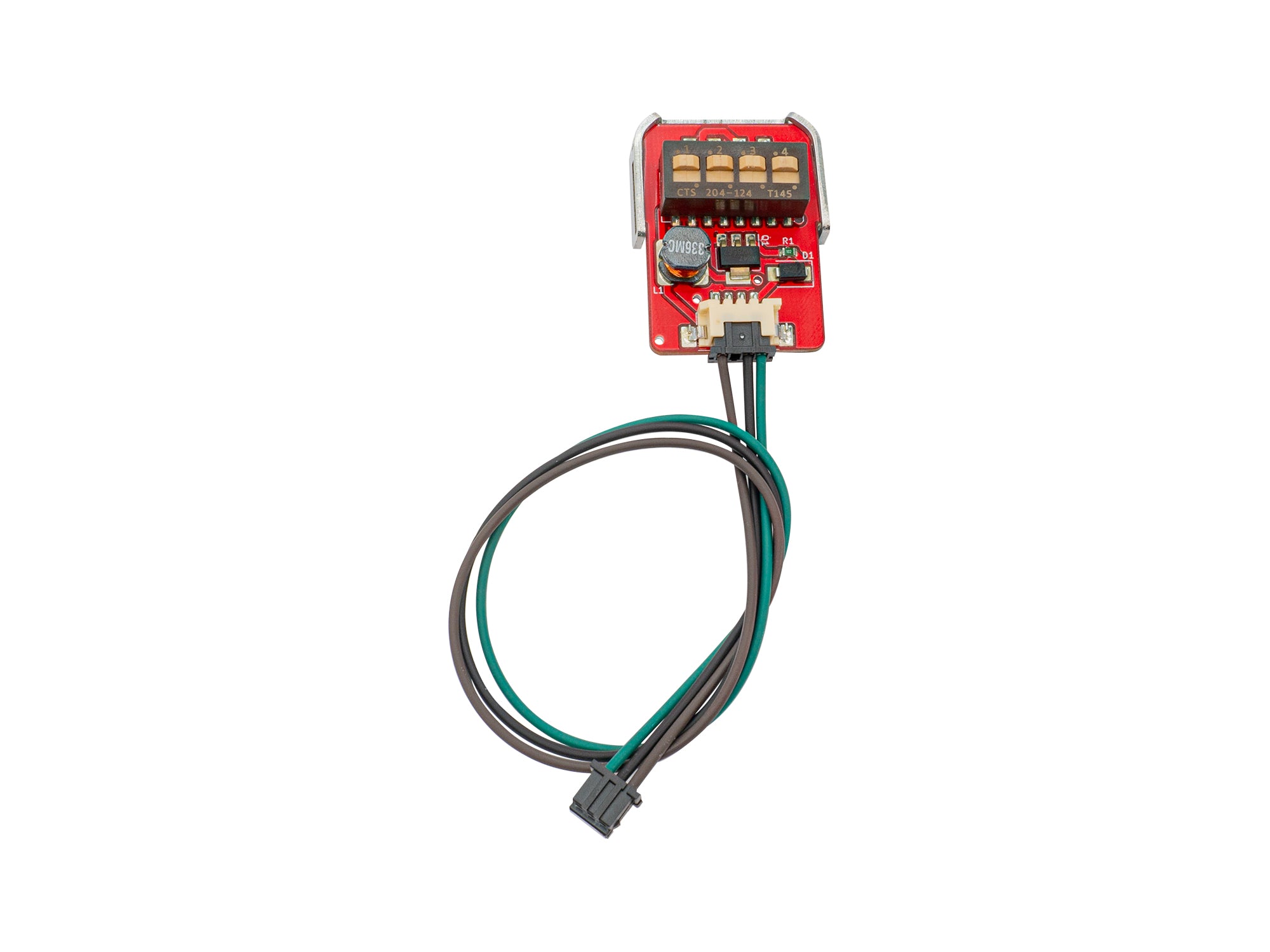

GoWesty Tachometer Adapter

• Converts the digital tachometer signal from the more modern ECU to a signal that the factory tachometer will read

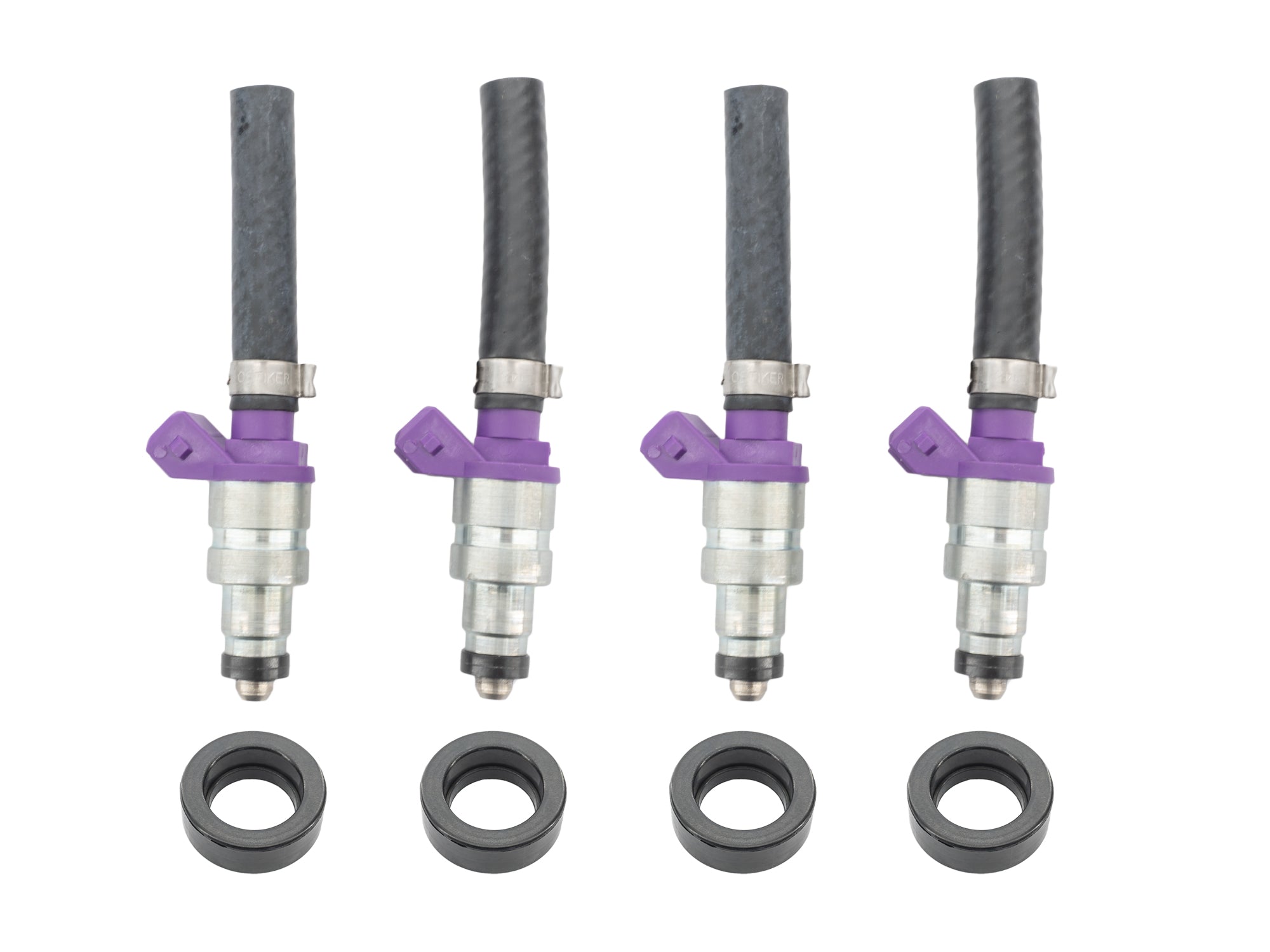

GoWesty Fuel Injector Bundle

• Modern, brand-new, flow-matched injector set designed specifically for our EFI.



  Display

  The basic ScanGauge2 delivers a compact digital display that gives you the info you need without the frills. The ScanGauge3 is a larger full-color capacitive touch display with many additional display features not found on the smaller unit and is worth every penny in our opinion!

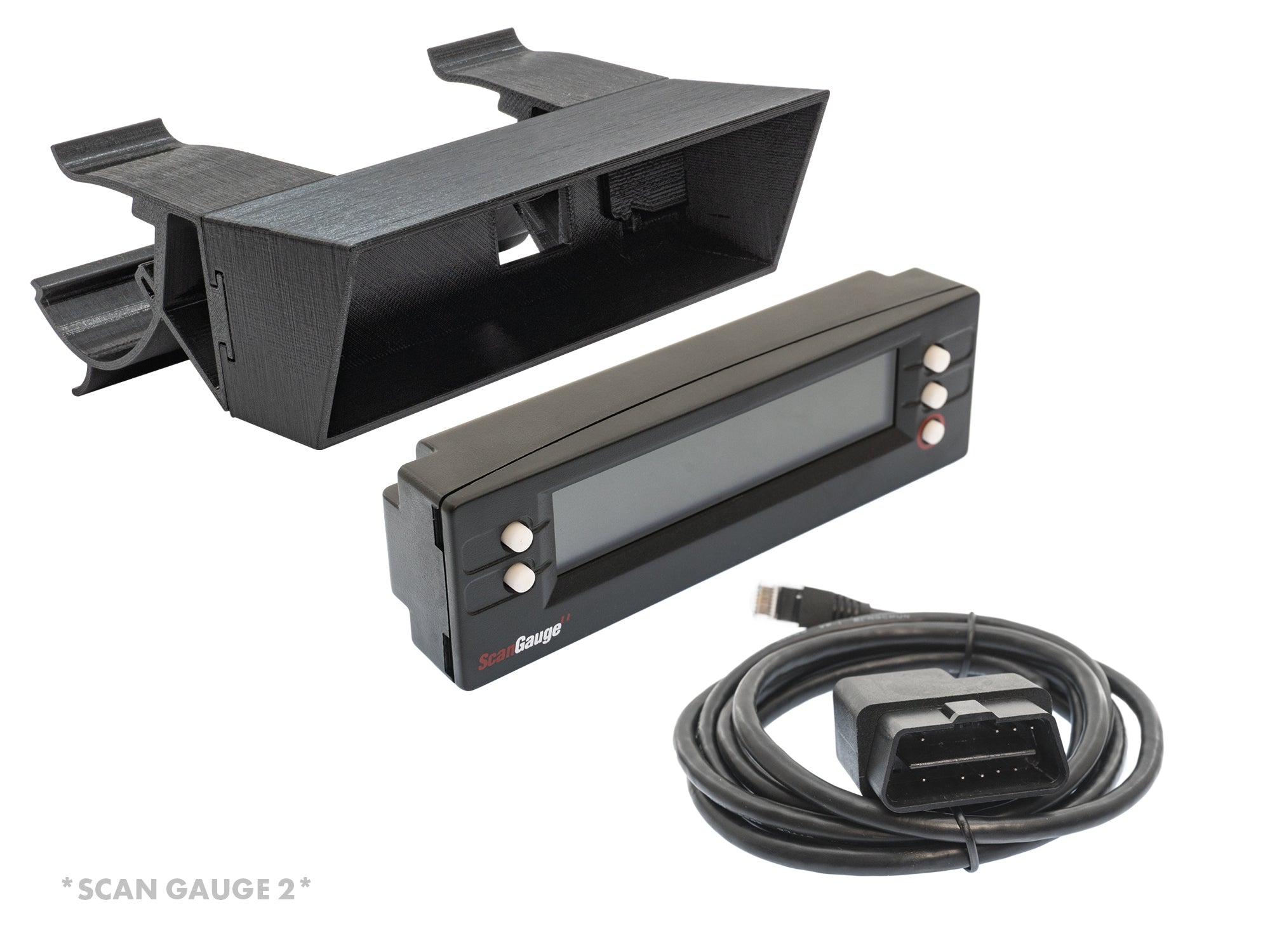

  ScanGauge2:
  • Small display with fixed illumination
  • Displays four basic digital readouts at a time
  • Read & Clear Trouble Codes

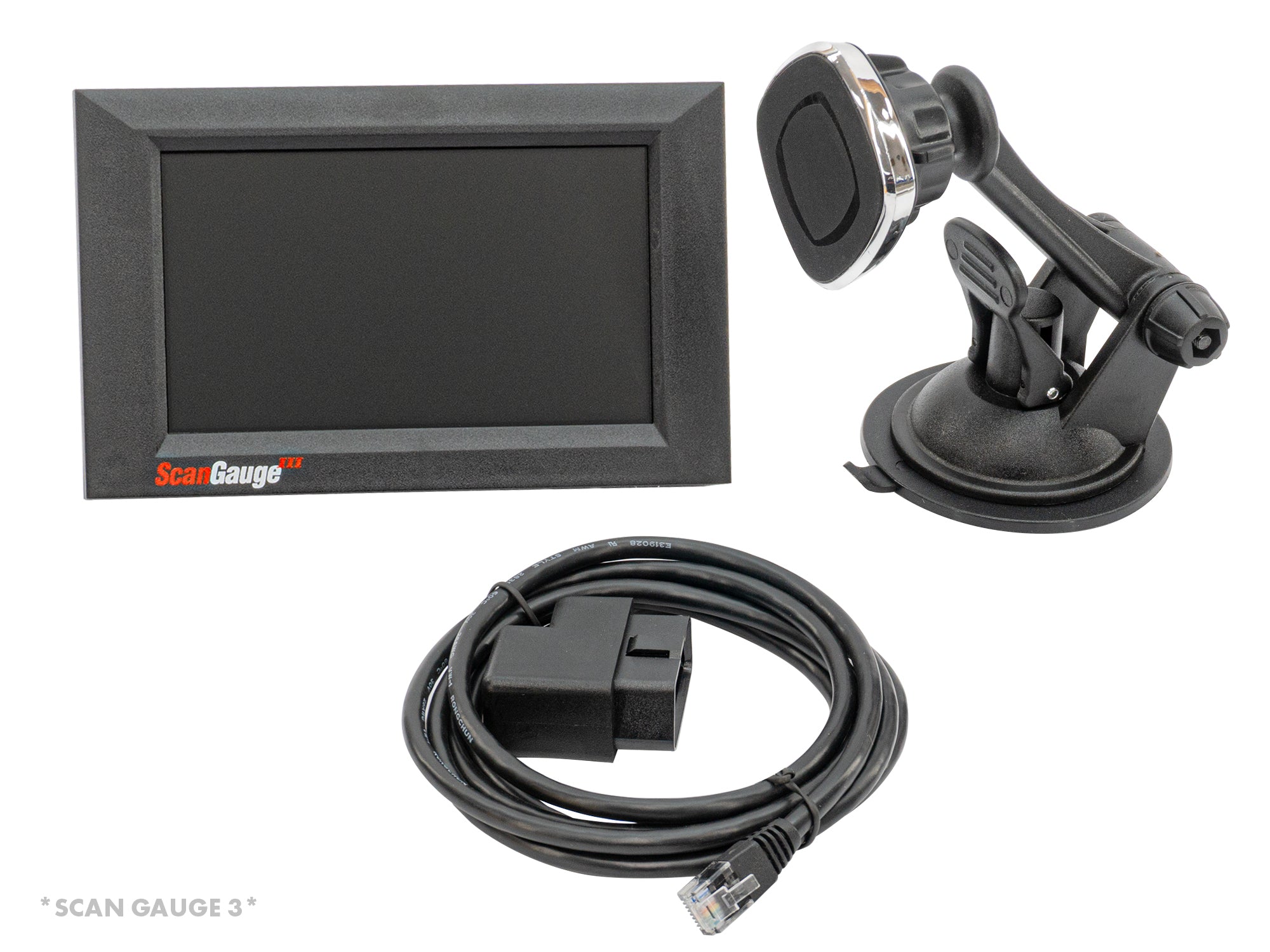

  ScanGauge3:
  • Displays your choice of 4, 6 or 9 Graphic Gauges at a time
  • Multi-Color Capacitive and Dimmable Touch Screen
  • Read & Clear Trouble Codes
  • Visual & Audible Alarms
  • Free WiFi firmware update capability

  More ScanGauge Specs from the Manufacturer:  vs.


Tech Notes

TECHNICAL NOTES & CONSIDERATIONS:

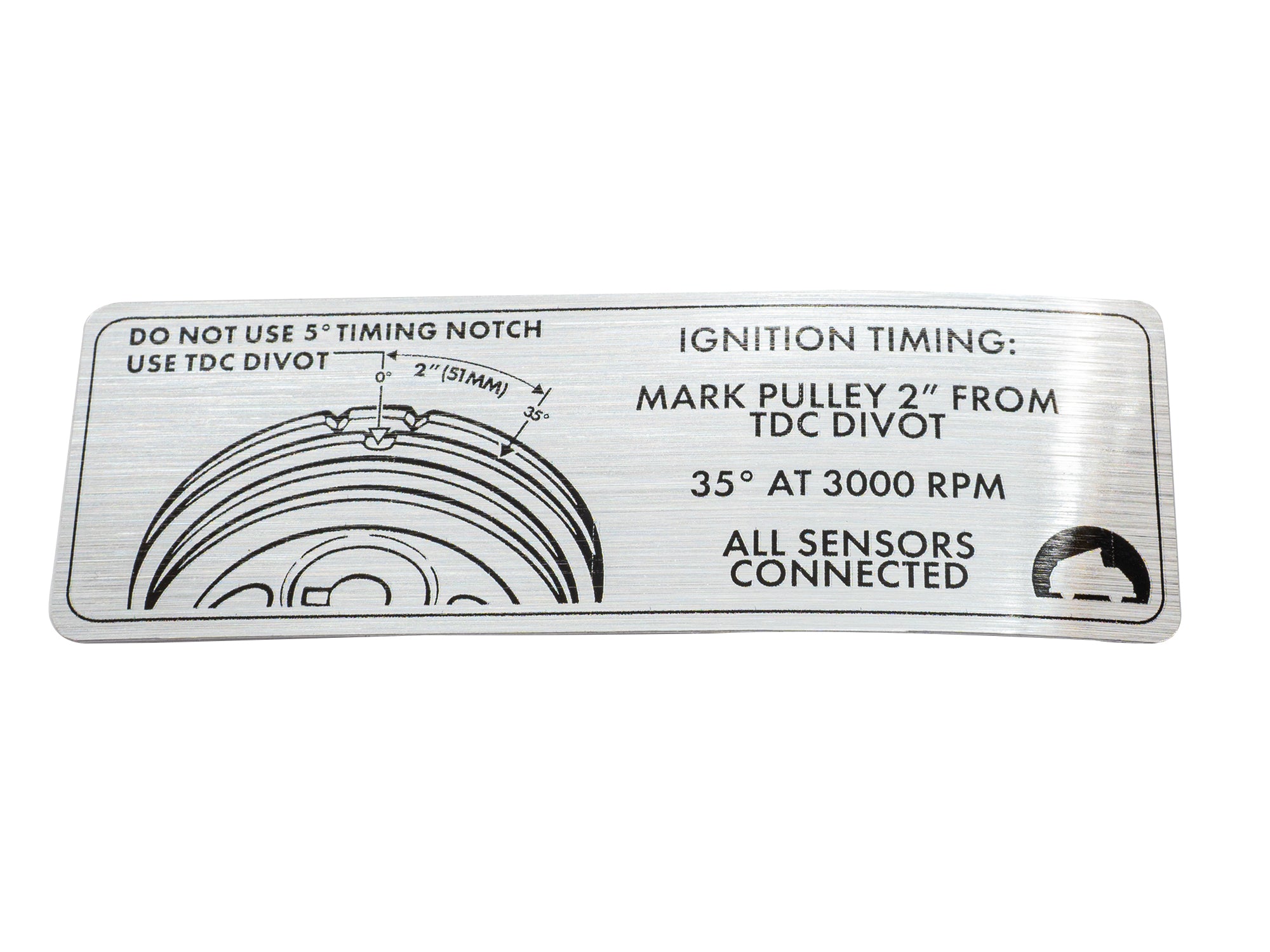

Ignition timing: Timing is set to original factory specifications. 35 degrees at 3000 RPM. Idle speed and fuel mixture is not adjustable and is completely automatic, as it was (supposed to be!) with Digifant.

Existing Components: Several components of the original fuel injection and delivery systems are not replaced by this kit, and their proper operation is critical for the new GW-EFI system to work properly and reliably. It is HIGHLY recommended that all of these listed below be replaced if they are original, or of unknown age. GoWesty will continue to supply these items individually for the long-term, of course.

Download the installation instructions on the "Instructions" tab to see the pre-check procedure.

Warranty & Support

• This system's components (except ECU) are warranted against defects for 12 months/12,000 miles (whichever comes first).
• The ECU is warranted against defects for 10 years, unlimited mileage.
• Professional installation is highly recommended.
• Technical support for issues at start-up will be offered free of charge, but only between GoWesty support staff and a professional technician.
• Technical support is otherwise offered at $75/hour, See item GW-TECH-SUPPORT.



  Emissions

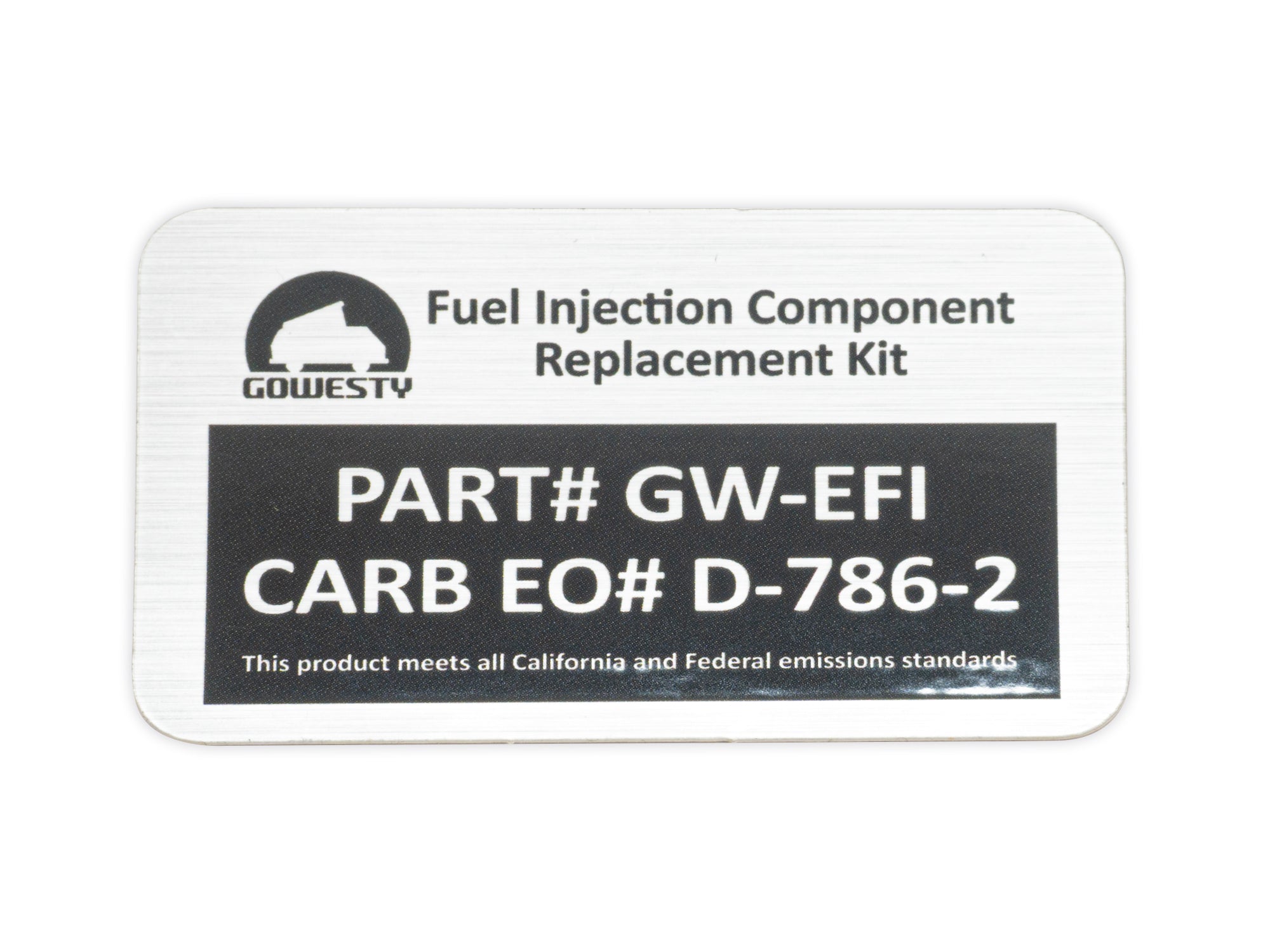

  EMISSIONS INFORMATION: Gowesty Fuel Injection Component Replacement Kit (GW-EFI) has received an official California Air Resources Board (CARB) Executive Order #D-786-2, and is smog-legal in all 50 states.

  Instructions

  Instructions:

  GoWesty Fuel Injection Component Replacement Kit - Installation PDF


  GW-EFI Mechanic's Guide

  GW-EFI Handbook

  GW-EFI Wiring Diagram

  GVW-SCANGAUGE-KIT - Installation PDF

  Estimated Installation Times:

  • Professional VW mechanic first time GW-EFI install : Estimated 10-12 hours
  • Professional VW mechanic, who has previously installed the GW-EFI: Estimated 8 hours
  • Amateur: Estimated 14+ hours

  Replacement Parts

  Need replacement parts, like an oxygen sensor or an ignition coil? Fear not, we based our system around readily available parts that you can source from virtually any auto parts store, or pop some in your cart from the list below.


  • Mass Air Flow (MAF) Sensor
  • Cam & Crank Position Sensor
  • Manifold Absolute Pressure (MAP) Sensor
  • Knock Sensor
  • Oxygen Sensor
  • Ignition Coil Pack
  • Spark Plug

  Prefer to hit up your local parts supplier? Download the Local Auto Parts List PDF
